Brand Name : | East |
Certification : | ISO9001:2008 |

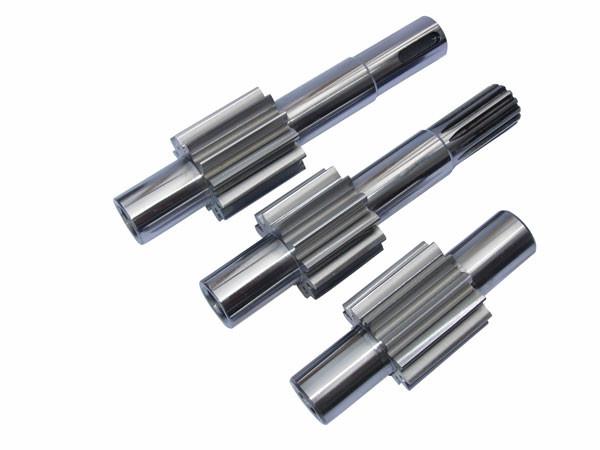

Model Number : | Commercial P50 P51 gear set |
Price : | |
Delivery Time : | 1~30days |
Payment Terms : | TT/LC/DP |
Supply Ability : | 10000PCS/MONTH |
East Gear are professional gears and pump parts manufacturer in Ningbo,
China with ISO9000 certificated, Here in our own factory, we can
provide high-precision hydraulic pump gear&shaft, pump parts,
PTO gears. All the gear&parts can be interchanged with that of
OEM parts of the hydraulic pump such as Permco, Parker Commercial
and Metaris gear pump etc.
We have complete gear machine including gear hobbing/gear
shaving/gear shaping/gear&spline grinding/worm wheel gear
grinding/CNC lathe machine etc., heat treatment and complete gear
inspection equipment. All of our parts are strictly made according
to the standard of ISO9001. And about 85% of our parts are exported
to U. S. A, Canada and Europe market for hydraulic gear pump,
PTO(power take off) and construction machinery.
Item No. | East Code | Parker Number | Name & Description | Gear Width | Remark |
---|---|---|---|---|---|
1 | 313-2805-000 | 313-2805-000 | P30 / P31 Pump and Motor Drive Gear Set | 1/2" | |
2 | 313-2807-000 | 313-2807-000 | P30 / P31 Pump and Motor Drive Gear Set | 3/4" | |
3 | 313-2810-000 | 313-2810-000 | P30 / P31 Pump and Motor Drive Gear Set | 1" | |
4 | 313-2812-000 | 313-2812-000 | P30 / P31 Pump and Motor Drive Gear Set | 1 1/4" | |
5 | 313-2815-000 | 313-2815-000 | P30 / P31 Pump and Motor Drive Gear Set | 1 1/2" | |
6 | 313-2817-000 | 313-2817-000 | P30 / P31 Pump and Motor Drive Gear Set | 1 3/4" | |
7 | 313-2820-000 | 313-2820-000 | P30 / P31 Pump and Motor Drive Gear Set | 2" | |
8 | 313-2822-000 | 313-2822-000 | P30 / P31 Pump and Motor Drive Gear Set | 2 1/4" | |
9 | 313-2825-000 | 313-2825-000 | P30 / P31 Pump and Motor Drive Gear Set | 2 1/2" | |
10 | 313-2827-000 | 313-2827-000 | P30 / P31 Pump and Motor Drive Gear Set | 2 3/4" | |
11 | 313-2830-000 | 313-2830-000 | P30 / P31 Pump and Motor Drive Gear Set | 3" |
Item No. | East Code | Parker Number | Name & Description | Gear Width | Type 1 |
---|---|---|---|---|---|
1 | 313-2905-250 | 313-2905-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1/2" | 7 |
2 | 313-2907-250 | 313-2907-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 3/4" | 7 |
3 | 313-2910-250 | 313-2910-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1" | 7 |
4 | 313-2912-250 | 313-2912-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1 1/4" | 7 |
5 | 313-2915-250 | 313-2915-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1 1/2" | 7 |
6 | 313-2917-250 | 313-2917-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1 3/4" | 7 |
7 | 313-2920-250 | 313-2920-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2" | 7 |
8 | 313-2922-250 | 313-2922-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2 1/4" | 7 |
9 | 313-2925-250 | 313-2925-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2 1/2" | 7 |
10 | 313-2927-250 | 313-2927-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2 3/4" | 7 |
11 | 313-2930-250 | 313-2930-250 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 3" | 7 |
Item No. | East Code | Parker Number | Name & Description | Gear Width | Type 1 |
---|---|---|---|---|---|
1 | 313-2905-750 | 313-2905-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 1/2" | 11 |
2 | 313-2907-750 | 313-2907-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 3/4" | 11 |
3 | 313-2910-750 | 313-2910-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 1" | 11 |
4 | 313-2912-750 | 313-2912-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 1 1/4" | 11 |
5 | 313-2915-750 | 313-2915-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 1 1/2" | 11 |
6 | 313-2917-750 | 313-2917-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 1 3/4" | 11 |
7 | 313-2920-750 | 313-2920-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 2" | 11 |
8 | 313-2922-750 | 313-2922-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 2 1/4" | 11 |
9 | 313-2925-750 | 313-2925-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 2 1/2" | 11 |
10 | 313-2927-750 | 313-2927-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 2 3/4" | 11 |
11 | 313-2930-750 | 313-2930-750 | SAE C - Str. Keyed, 1.250" Dia., 5/16 x 1 1/2” Key | 3" | 11 |
Item No. | East Code | Parker Number | Name & Description | Gear Width | Type 1 |
---|---|---|---|---|---|
1 | 313-2905-230 | 313-2905-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1/2" | 25 |
2 | 313-2907-230 | 313-2907-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 3/4" | 25 |
3 | 313-2910-230 | 313-2910-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1" | 25 |
4 | 313-2912-230 | 313-2912-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1 1/4" | 25 |
5 | 313-2915-230 | 313-2915-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1 1/2" | 25 |
6 | 313-2917-230 | 313-2917-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1 3/4" | 25 |
7 | 313-2920-230 | 313-2920-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2" | 25 |
8 | 313-2922-230 | 313-2922-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2 1/4" | 25 |
9 | 313-2925-230 | 313-2925-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2 1/2" | 25 |
10 | 313-2927-230 | 313-2927-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2 3/4" | 25 |
11 | 313-2930-230 | 313-2930-230 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 3" | 25 |
Item No. | East Code | Parker Number | Name & Description | Gear Width | Type 1 |
---|---|---|---|---|---|
1 | 313-2905-740 | 313-2905-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 1/2" | 43 |
2 | 313-2907-740 | 313-2907-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 3/4" | 43 |
3 | 313-2910-740 | 313-2910-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 1" | 43 |
4 | 313-2912-740 | 313-2912-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 1 1/4" | 43 |
5 | 313-2915-740 | 313-2915-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 1 1/2" | 43 |
6 | 313-2917-740 | 313-2917-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 1 3/4" | 43 |
7 | 313-2920-740 | 313-2920-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 2" | 43 |
8 | 313-2922-740 | 313-2922-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 2 1/4" | 43 |
9 | 313-2925-740 | 313-2925-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 2 1/2" | 43 |
10 | 313-2927-740 | 313-2927-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 2 3/4" | 43 |
11 | 313-2930-740 | 313-2930-740 | Straight Keyed , 0.9984" Major Dia., Key 1/4" x 3/8" x 1 1/4" | 3" | 43 |
Item No. | East Code | Parker Number | Name & Description | Gear Width | Type 2 |
---|---|---|---|---|---|
1 | 313-2905-450 | 313-2905-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1/2" | 53 |
2 | 313-2907-450 | 313-2907-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 3/4" | 53 |
3 | 313-2910-450 | 313-2910-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1" | 53 |
4 | 313-2912-450 | 313-2912-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1 1/4" | 53 |
5 | 313-2915-450 | 313-2915-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1 1/2" | 53 |
6 | 313-2917-450 | 313-2917-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 1 3/4" | 53 |
7 | 313-2920-450 | 313-2920-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2" | 53 |
8 | 313-2922-450 | 313-2922-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2 1/4" | 53 |
9 | 313-2925-450 | 313-2925-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2 1/2" | 53 |
10 | 313-2927-450 | 313-2927-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 2 3/4" | 53 |
11 | 313-2930-450 | 313-2930-450 | SAE C - 14 Tooth Spline, 1.228" Major Diameter | 3" | 53 |
Item No. | East Code | Parker Number | Name & Description | Gear Width | Type 2 |
---|---|---|---|---|---|
1 | 313-2905-430 | 313-2905-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1/2" | 65 |
2 | 313-2907-430 | 313-2907-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 3/4" | 65 |
3 | 313-2910-430 | 313-2910-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1" | 65 |
4 | 313-2912-430 | 313-2912-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1 1/4" | 65 |
5 | 313-2915-430 | 313-2915-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1 1/2" | 65 |
6 | 313-2917-430 | 313-2917-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 1 3/4" | 65 |
7 | 313-2920-430 | 313-2920-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2" | 65 |
8 | 313-2922-430 | 313-2922-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2 1/4" | 65 |
9 | 313-2925-430 | 313-2925-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2 1/2" | 65 |
10 | 313-2927-430 | 313-2927-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 2 3/4" | 65 |
11 | 313-2930-430 | 313-2930-430 | SAE B - 13 Tooth Spline, 0.858" Major Diameter | 3" | 65 |
